Roof Terrace Design Belgravia
GARDEN DESIGN BY EMILY ERLAM & CONSTRUCTED BY THE GARDEN BUILDERS LONDON.
The entire surface was fitted with the Kinley Preventa Joist/pedestal system, which consisted of aluminium pedestals and joists (for anti-fire regulations), this system supported the entire Porcelain tile terrace, the 20mm tiles clipped into position on the joist and were held and spaced exactly 3mm apart by the clip system. Where the Raaft/Kinley bespoke planters were positioned, these were fixed onto aluminium roof trays that again sat on the Preventa joist system.
Belgravia Roof Terrace Garden Design
STUNNING GARDEN ROOF TERRACE BELGRAVIA.

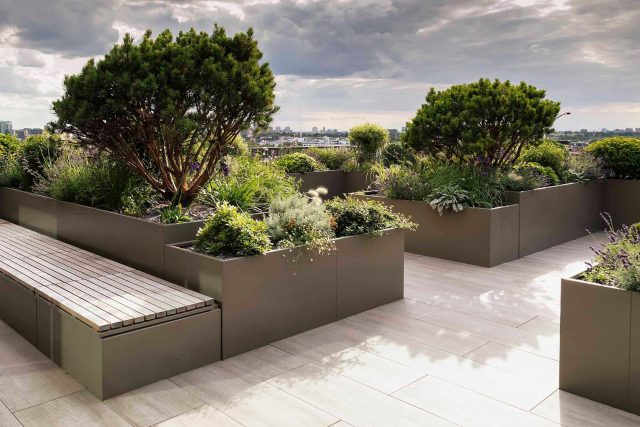

These roof trays allowed the planters to be fixed down and secured to them but also became the bottom of the planters and allowed the soil to drain, by way of pre-drilled holes. The planters were designed and then fabricated to suit the design, they were bolted together onsite to the exact design. Backfilled with a lightweight substrate ideal for mature planting on a Podium environment. New mature and semi-mature plants were selected by the designer and planted by the GB team. A decorative aggregate mulch covered the soil, as maintenance aid, but also to tie together the planting.
Belgravia Specialist Roof Terrace Garden Designers
SEAMLESSLY INTEGRATED TERRACE GARDEN DESIGN BELGRAVIA.

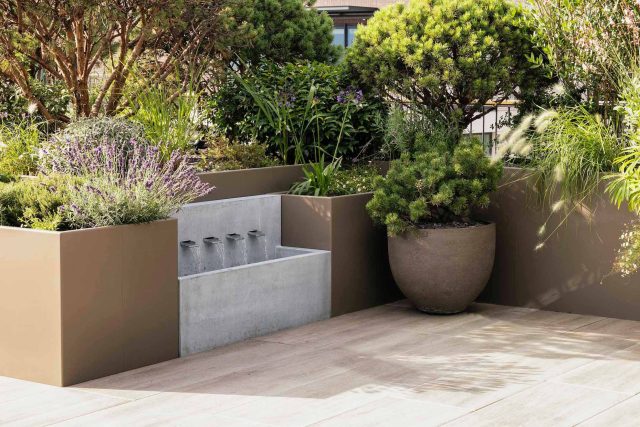

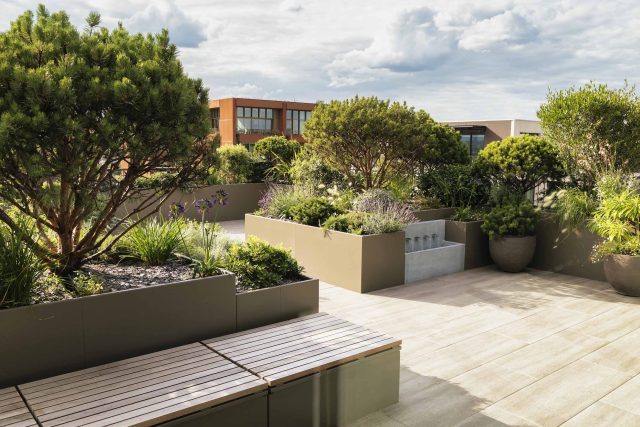

Within the planters, large bespoke Iroko benches and storage units were commissioned by The Garden Builders, fabricated locally in North London and seamlessly integrated into the aluminium arrangement. A stunning galvanised triple spout water feature, ‘A Place In The Sun’ was purchased and fitted into the arrangement, all within mm tolerances. Hunza lighting was woven into the planter carcasses to allow illumination of the feature Pines and topiary, allowing this planting display to stand out against the London Cityscape.
Belgravia Roof Garden Designer
SLEEK CONTEMPORARY ROOF GARDEN BUILDERS BELGRAVIA.
Tap mounted irrigation cleverly weaves through the planting allowing for healthy growth in the warmer months in the potentially harsh roof top environment. All the above had to be managed in terms of scheduling, site storage, crane lifts and weight loading constraints. Alongside a separate, huge refurbishment of the building. So a tight schedule of works with limited times and dates had to be worked out and strictly adhered to and adjusted when required.
Roof Terrace Garden Company Belgravia
BELGRAVIA ROOF TERRACE GARDEN SPECIALIST.
The Garden Builders, in close consultation with The Kings Cross Partnership, site security/administration, Emily Erlam, the Main Contractor 8 Build and the homeowner collaborated to get this project delivered. What was achieved whilst this external refurbishment works was going on, is nothing short of incredible, the starting point of the stunning design and planting arrangement, allows for the inception of the build and planting to truly shine and compliment great design. Then at the end having a client that is truly thrilled with the result (through some very testing site constraints) makes it even more worthwhile.
